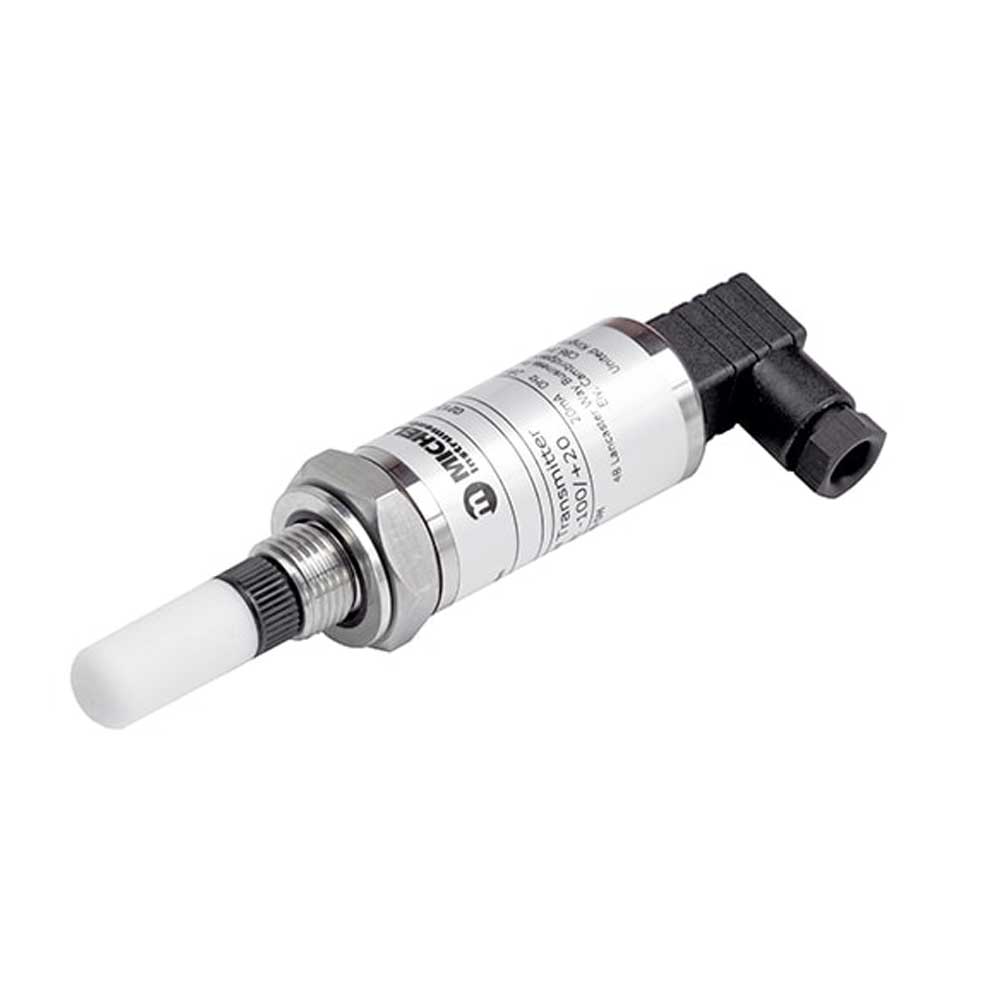

The Michell Instruments Easidew EA2 IS dew point transmitter offers measurement from -110 to 20°Cdp and a two-wire 4 to 20mA analog output with an intrinsically safe rating. The EA2 IS’ certifications include IECEx, CSA, FM and ATEX approvals for use in hazardous areas.
Featuring a 316 stainless steel sensor and sample block, the EA2 IS is available with G1/2 inch BSP, 3/4 inch UNF or 5/8 inch UNF process connections standard. This Michell Instruments dew point transmitter maintains an accuracy of ±2°Cdp and the output can be configured for dew point or ppmv moisture content.
Michell Instruments’ sensor exchange program makes this Easidew transmitter easy to maintain while lowering the overall cost of ownership. Each dew point transmitter is cleaned for oxygen service and includes a traceable calibration certificate.
- Measurement ranges from -110 up to +20°Cdp
- 2-wire loop power connection
- ±2°Cdp (±3.6°Fdp) accuracy
- 12 to 28 V DC power supply
- 316 stainless steel sensor & sample blocks
- G1/2in BSP, 3/4in UNF & 5/8in UNF process connection options
- 2-wire 4 to 20 mA output
- Oxygen service cleaned
- Sensor exchange program
- Low cost of ownership
- Easy maintenance
