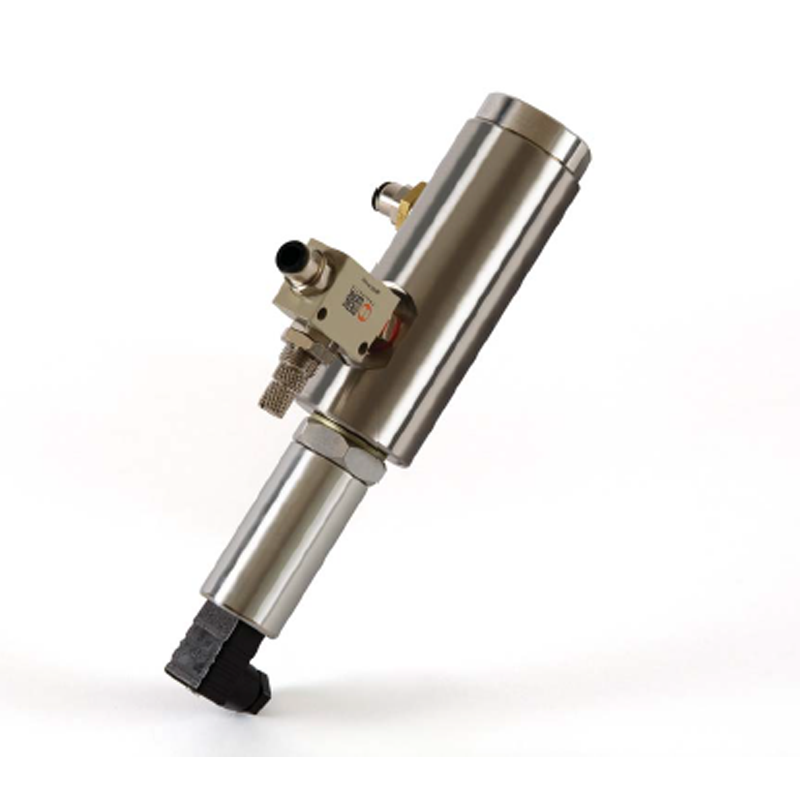

Dew-Point Sampler Self-Contained Sampling System


A low-cost, self-contained sampling system, with filtration and flow control, for measurement of either pressure or atmospheric dew points.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

  • Universal configuration for atmospheric or line pressure dew-point measurements
  • Integral particulate filter
  • Metering valve for flow control
  • Single block design for faster measurement response
  • Gas pressure to 1 MPa (10 barg) with a high-pressure option to 21 MPa (210 barg) available
Gas Flow Rate 1 to 5 Nl/min
Operating Pressure 1 MPa (10 barg) with a high pressure option to 21 MPa (210 barg) available
Particulate Filter 99.5% removal of 0.3 microns
Gas Connections Quick Connect fittings for 6mm O/D plastic tubing or ¼” Swagelok® tube fittings (PTFE or FEP recommended)
Sample Tube Supplied with 0.5m pig-tail vent tube, to prevent back-diffusion
Vacuum Rating Standard push fittings are not vacuum rated
Construction Material Block and Cap: 316 Stainless Steel
Flow Control Block: Aluminium
Couplings: Nickel plated Brass
Sensor Port ⅝” UNF to support all Michell Instruments’ Impedance Sensors / Transmitters
Environmental IP66 (NEMA 4)
Operating Temperature -40 to +60°C (or as determined by sensor specification)
Storage Temperature -40 to +70°C, 0-95% RH; non-condensing
Weight 1.1kg (1.3kg with sensor installed)
